Control style packs (skins)

styles next to the exe, folder names, pack.json, and fixed file names.

A style pack is a set of control “skins”: default images for sliders, switches, buttons, and so on. The app scans styles/ next to RUI_Studio.exe and styles/ in the current project. This folder is not baked into the installer resources — copy styles when you copy the app.

Two pack kinds

KindWhat you seeUse
Plain folderstyles/SomePack/Easiest for making and editing skins
EncryptedSomePack.rui.styleOfficial builds; import via Settings → Manage style packs. Save as copies the whole pack into project styles/; it does not split skins into image/

Scan order (roughly): encrypted packs in the project → imported packs on this PC → encrypted packs next to the exe → project plain folders → exe-side plain folders. Same packId: the project wins.

The factory sample is usually styles/default_pack/.

How to build a plain folder

styles/
  my_pack/                 ← folder name should match packId
    pack.json              ← required
    slider/
    progressbar/
    switch/
    checkbox/
    button/
    radiobutton/
    textinput/

You do not need every widget. Only add the subfolders you use. Formats: .png / .jpg / .jpeg / .bmp.

Naming

  • packId and folder name: lowercase English, digits, underscore — e.g. default_pack, user_pack. No spaces or CJK in the folder name.
  • Subfolder names must be the English names above (slider, switch, …), not a translated label.
  • Image file names are fixed in the tables below (do not add extra suffixes besides the extension). Pick any supported extension.

pack.json

Put one file at the pack root, for example:

{
  "packId": "my_pack",
  "displayName": "My style",
  "version": "1.0",
  "widgets": [ "slider", "progressbar", "switch", "checkbox", "button", "textinput" ]
}
FieldMeaning
packIdInternal id; must match the folder name
displayNameName in the place-control dropdown
versionVersion string for you
widgetsWhich controls this pack includes. List only folders you actually made

If widgets names a control that has no folder or required image, that skin fails or falls back to the default pack.

Fixed file names

Slider slider/

File (no extension)Required
track1Yes (track 1; legacy track still works)
track2No (second track)
thumbNo (dual-track can work without a thumb)
thumb_pressedNo (pressed thumb)

Progress bar progressbar/

FileRequired
track1Yes
track2No

No thumb images.

Switch switch/

FileRequired
frame_1 (off), frame_5 (on)Yes
frame_2 ~ frame_4No (transition)
frame_0No (invalid)

Use an underscore: frame_1, not frame1.

Check box checkbox/

FileRequired
frame1 unchecked, frame2 checkedYes
frame3 mixedNo
frame1_disabled and the other two disabledNo
frame1_pressed and the other two pressedNo

Here it is frame1 with no underscore.

Nine-state button button/

Inactive / active / alarm × normal / disabled / pressed. Same naming as the check box: frame1–frame3 plus _disabled and _pressed.

Radio button radiobutton/

Unchecked / checked × normal / disabled / pressed (six images; no mixed frame3). Same frame1 / frame2 plus _disabled / _pressed.

Text input textinput/

FileRequired
frame1 normalYes
frame1_disabledNo
frame1_pressedNo

In the app

  1. Put the pack in styles/ next to the exe or the project.
  2. Place the control and pick displayName in the style dropdown.
  3. Encrypted packs come from us; import under Settings → Manage style packs. A plain pack appears as soon as the folder and pack.json are valid — no import step.
  1. Save as: images used by a plain pack can go into project image/; an encrypted pack copies .rui.style into project styles/.

If no pack is available, the app falls back to default_pack.

Encrypted packs

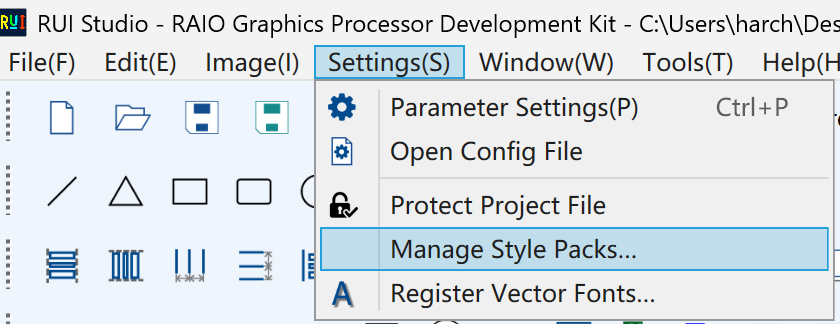

Encrypted packs (.rui.style) are built and shipped officially. Import them under Settings → Manage style packs, then pick them in the style dropdown.

To make your own skins, use a plain folder: styles/<packId>/ plus pack.json as above. You do not need to build an encrypted pack.
